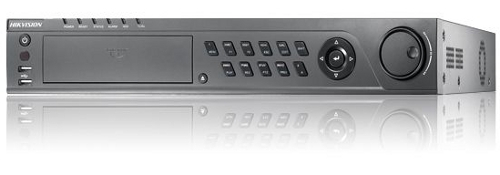

DVR (Digital Video Recorder) cu 16 canale, compresie video H264 , 4/2 Canale Audio si compresie audio de G.711. Aparatele DVR sunt gadget-uri ce functioneaza ca centru de stocare si inregistrare a imaginile furnizate de camerele de supraveghere ale unui sistem de monitorizare. In functie de numarul de canale, acestea pot fi conectate la mai multe sau mai ptuine camere. Aceste aparat are poate fi conectat la 16 camere de supraveghere, este ideal pentru un sistem de supraveghere mediu, pentru casa, interior, exterior sau pentru o firma, depozit etc.
Un DVR performant este esential pentru eficienta sistemului de supraveghere, rezolutia si nivelul de compresie, precum si capacitatea de stocare sunt factori importanti in aceasta privinta. Caracteristicile tehnice complete pentru acest produs sunt disponibile mai jos.
|
MODEL |
DS-7316HFI-ST |
|
Video/Audio Input |
|
|
Video Compression |
H.264 |
|
Analog Video Input |
16-ch |
|
PAL/NTSC Adaptive |
Support |
|
Video Input Interface |
BNC, 1.0Vp-p, 75Ω |
|
Audio Compression |
G.711 |
|
Audio Input |
4-ch |
|
Audio Input Interface |
RCA, 2.0Vp-p, 1KΩ |
|
Two-way Audio |
1-ch RCA, 2.0Vp-p, 1KΩ |
|
Video/Audio Output |
|
|
VGA Output |
1-ch, resolution: 1920x1080P, 1600x1200, 1280x1024, 1280x720, 1024x768 |
|
CVBS Output |
2-ch, 1 Main Video Out + 1 Spot Video Out |
|
BNC, 1.0Vp-p, 75Ω |
|
|
resolution: PAL: 704x576 |
|
|
HDMI Output |
1-ch, resolution: 1920x1080P, 1600x1200, 1280x1024,1280x720, 1024x768 |
|
Recording Resolution |
4CIF / 2CIF / CIF / QCIF |
|
Frame Rate |
25 fps |
|
Video Bit Rate |
32Kbps ~ 2048Kbps, or user-defined (max. 3Mbps) |
|
Stream Type |
Video / Video&Audio |
|
Audio Output |
2-ch RCA, Linear electrical level, 600Ω |
|
Audio Bit Rate |
64Kbps |
|
Dual Stream |
Support |
|
Synchronous Playback |
16-ch |
|
Hard Disk Driver |
|
|
Interface Type |
4 SATA interfaces for 2 HDDs + 1 DVD-RW (default), or 4 HDDs |
|
Capacity |
Up to 4Tb capacity for each disk |
|
e-SATA Interface |
1 e-SATA interface |
|
External Interface |
|
|
Network Interface |
1 RJ45 10M/100M adaptive Ethernet Interface |
|
USB Interface |
3 USB2.0 interfaces |
|
Serial Interface |
1 RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface |
|
Alarm Input |
8-ch |
|
Alarm Output |
4-ch |
|
General |
|
|
Power Supply |
100 ~ 240VAC, 5A, 50~60Hz |
|
Consumption |
≤ 25W (without hard disk or DVD-RW) |
|
Working Temperature |
-10°C ~ +55°C |
|
Working Humidity |
10% ~ 90% |
|
Chassis |
19-inch rack-mounted 1.5U chassis |
|
Dimensions |
440(W) x 390(D) x 70(H)mm |
|
Weight |
≤ 8Kg (without hard disk or DVD-RW) |
Caracteristici:
FEATURE
-H.264 video compression
-4CIF resolution real time recording
-HDMI/VGA output at 1920x1080P resolution
-e-SATA interface
-16-ch synchronous playback
-SADP (IP Finder), SMTP, SNMP, FTP, NFS, NTP protocols
