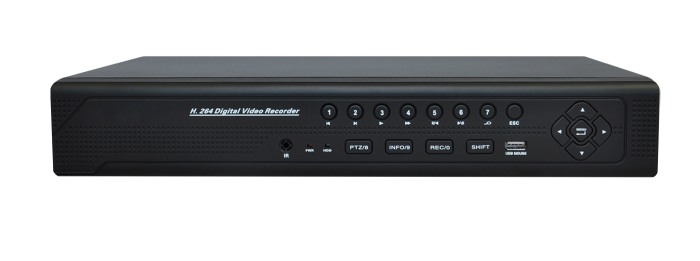

![Dvr 8 canale 960H Real time recording [1]](https://gomagcdn.ro/domains3/ordis.ro/files/product/original/dvr-8-canale-960h-real-time-recording-191784.jpg "Dvr 8 canale 960H Real time recording [1]")
Livrare 24h
Suport tehnic
Retur bani 30 zile
Garanție 2 ani
- Descriere
- Caracteristici
- Download (1)
- Video (1)
- Review-uri (0)
Înregistrator video digital, 8 canale, H.264, conexiune LAN, 1 ieșire pentru monitorul principal (HDMI, BNC sau VGA), audio: 8 intrari / 1 ieșire audio, parametri setabili independent pentru fiecare canal, rezoluție maximă 704 x 576, viteză de înregistrare: până la 200 fps (720x576), protocoale de comunicare PELCO-P&PELCO-D PTZ control, max. 1 HDD pana la 4 T, Support Internet Explorer, Mobile phone and special client software, Cloud technology, 3G/ WIFI.
Caracteristici:
- 8-Channel H.264 Real Time Network Digital Video Recorder (8CH * 960H) HDMI
- Video Compression: H.264; Video System: PAL/NTSC
- Video input/output: BNC 8-channel Input and 1-channel BNC Output and 1-channel VGA Output
- Audio input/output: RCA 8-channel input/ RCA 1-channel output
- Alarm input/output: 8-channel input/1-channel output
- Display resolution: D1 704 x 576 (PAL/NTSC)
- Video Standards: PAL 625 line,50 f/s;NTSC 525 line,60 f/s
- Video Recording: D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
- Realtime live display up to 4 cameras,100/120fps recording for CIF,44fps recording for D1
- Playback resolution: 8CH full 960H recording and palyback simultaneously
- 1 RJ-45 10/100M via Ethernet, Support TCP/IP PPPOE DHCP DNS DDNS SNTP NTP UPNP
- Support Internet Explorer, Mobile phone and special client software, Cloud technology,3G/ WIFI, JPEG snapshot
- With RS485, USB, IR Controller(optional), USB2.0 mouse
- Support PELCO-P&PELCO-D PTZ control
- Support 20 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish,Vietnamese,Ukrainian,Romanian,Brazilian,korean
- Support 2 SATA Hard Disk inferface (8TB in total)
- Dimension: 210mm×258mm×45mm (LxWxH) Weight:3.5Kg
Caracteristici:
Model
ODS-SD08H
System
Main processor
Technical grade embedded microprocessor HI 3521
Operating system
Embedded LINUX operating system
System resource
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Interface
Operation interface
16bit real color GUI interface support mouse operation
Display screen
1/4 /8/9screen (take analog channel as an example, other is base on the selected channel mode)
Video
Video standard
PAL(625 line-50f/s)(NTSC-525 line-60 f/s)
Image encode
H.264(Main Profile)
Monitor quality
Monitor:D1;VGA,HDMI:High definition(support 1920*1080,1280*720,1440*900,1280*1024, 1024*768,800*600)
Playback quality
960H/D1/HD1/CIF
Encode capability
8ch 960H real‐time
Decode capability
4ch 960H real‐time
Multi-mode video input
Local analog input
8 *960H
Local analog + network digital input:
4*D1+(1*1080P+ 3*720P)
All network digital input：
16*D1/2*1080P+2*720P/1*1080P+1*720P+6*960H/8*720P
Motion detection
Each channel can set 192(16*12)detection area-can set multi-level of flexibility (for local analog channel only)
Audio
Audio compression
G711A
Bidirectional talk
support
Record and playback
Record mode
manual>alarm>motion detection>timing
Local playback
1-8ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)
Video search
time-date-event-channel search
Storage and back up
Space occupation
VideoCIF 4~5G/day*channel D1 16~20G/day*channel audio 691.2M/day*channel
Video storage
Local HDD Network
Back up mode
Network backup USB portable HDD USB imprintSATA imprint
Interface
Video input
8 ch BNC(1.0Vp-p,75Ω)
Video output
1ch BNC(1.0Vp-p,75Ω)1ch VGA1ch HDMI
Loop output
optional
Audio input
8ch RCA(200-2800mV,30KΩ)
Audio input
1ch RCA(200-3000mV,5KΩ)
Alarm input
8ch
Alarm output
1ch
Network port
RJ45 10M/100M self-adaptive Ethernet port
PTZ control
1 RS485- RS232 support multi kinds of PTZ protocol
USB port
2*USB2.0
HDD port
2 SATA port (each max to 4T)
Wireless port
3G,WIFI( extension via USB port)
Other
Power
12V/4A
Consumption
<15W(not including HDD)
Temperature
0ºC-55ºC
Humidity
10%-90%
Atmosphere pressure
86kpa-106kpa
Dimension
L370*W305*H65
Weight
3.5KG
-
