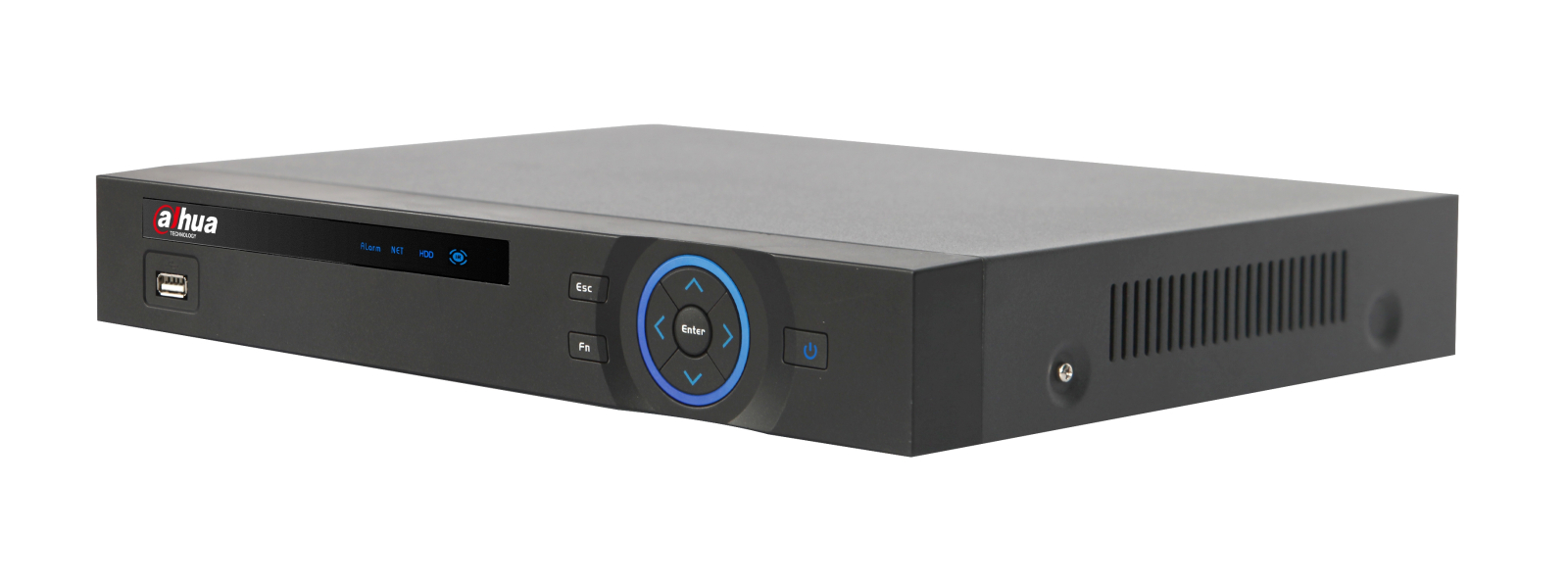

![Dvr 16 canale compresie H.264 960h DVR5116-HE [1]](https://gomagcdn.ro/domains3/ordis.ro/files/product/original/dvr-16-canale-compresie-h-264-960h-dvr5116-he-426902.jpg "Dvr 16 canale compresie H.264 960h DVR5116-HE [1]")

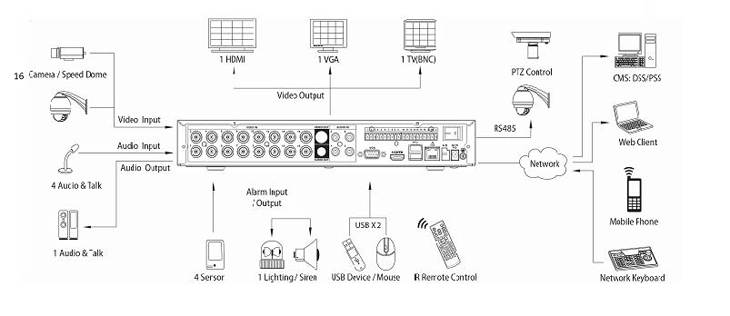

![Dvr 16 canale compresie H.264 960h DVR5116-HE [2]](https://gomagcdn.ro/domains3/ordis.ro/files/product/original/dvr-16-canale-compresie-h-264-960h-dvr5116-he-581705.jpg "Dvr 16 canale compresie H.264 960h DVR5116-HE [2]")
![Dvr 16 canale compresie H.264 960h DVR5116-HE [0]](https://gomagcdn.ro/domains3/ordis.ro/files/product/medium/dvr-16-canale-compresie-h-264-960h-dvr5116-he-426902.jpg "Dvr 16 canale compresie H.264 960h DVR5116-HE [0]")
![Dvr 16 canale compresie H.264 960h DVR5116-HE [1]](https://gomagcdn.ro/domains3/ordis.ro/files/product/medium/dvr-16-canale-compresie-h-264-960h-dvr5116-he-581705.jpg "Dvr 16 canale compresie H.264 960h DVR5116-HE [1]")
Livrare 24h
Suport tehnic
Retur bani 30 zile
Garanție 2 ani
- Descriere
- Caracteristici
- Download (1)
- Review-uri (0)
- 16 intrari video analogic+IP Megapixel,
- 4 intrare audio,
- Inregistrare cu 400 fps WD1, 960H(960x576),
- Inregistrare la detectie miscare, dupa orar, continuu sau intrari alarma, LAN, webserver,
- CMS (soft dispecerat) gratuit pentru 300 canale,
- 2 porturi USB,
- RS485 pentru comanda speed domuri,
- Suporta 1 hard disk SATA II ,
- 1 iesire videocomplex,
- 1 iesire VGA,
- 1 iesire HDMI,
- Dual stream,
- Permite vizualizarea direct de pe telefonul mobil 3G Smartphone (Android, iPhone, Win mobile, Symbian, BlackBerry),
- Playback simultan pentru 16 canale,
- Operare pentaplex,
- Telecomanda,
- Controlul meniurilor cu mouse USB,
- Controlul speed domurilor cu mouse direct pe imagine (3D intelligent location - click on image),
- Dimensiune mini 1U 325mm x 245mm x 45mm
Caracteristici:
System Video Audio Display Recording Video Detection& Alarm Playback & Backup Network Storage Auxiliary Interface General
Model
DVR5104HE
DVR5108HE
DVR5116HE
Main Processor
Embedded processor
Operating System
Embedded LINUX
Input
4 channel, BNC
8 channel, BNC
16 channel, BNC
Standard
NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Input
4 channel, RCA
Output
1 channel, RCA
Two-way Talk
Reuse audio input/output channel 1
Interface
1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75Ω)
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split
1/4
1/4/8/9
1/4/8/9/16
Privacy Masking
4 rectangular zones (each camera)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/Audio Compression
H.264 / G.711
Resolution
960H/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate
Main Stream:
960H/D1(1~25/30fps)
Extra Stream
QCIF(1-25/30fps)/CIF(1-6/7fps)
Bit Rate
48~3072Kb/s
Record Mode
Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input
4 channel
8 channel
16 channel
Relay Output
3 channel
1channel
Sync Playback
1/4
1/4/9
1/4/9/16
Search Mode
Time/Date, MD & Exact search (accurate to second)
Playback Functions
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device / Network
Ethernet
RJ-45 port (10/100M)
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Internal HDD
1 SATA port, up to 4TB
USB Interface
2 ports (1 Rear), USB2.0
RS485
PTZ control
Power Supply
DC12V/2A
Power Consumption
10W(without HDD)
Working Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H)
Mini 1U, 325mm×245mm×45mm
Weight
1.5KG(without HDD)
-
