Livrare 24h
Suport tehnic
Retur bani 30 zile
Garanție 2 ani
- Descriere
- Caracteristici
- Review-uri (0)

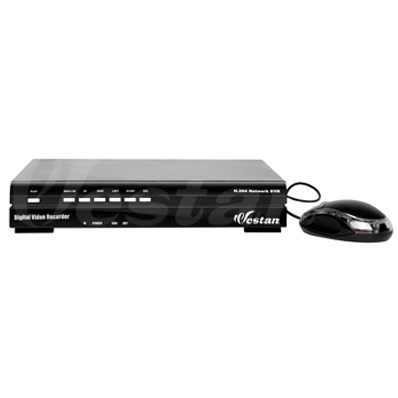

Dvr cu 4 canale D1 si inregistrare real time model H264 WS-6204D. Produsul are un procesor cu o performanta ridicata si sistem de operare LINUX. Interfata este color pe 16 biti si ofera suport pentru mouse. Inregistrarile se pot in face in real time pentru mai multe canale simultan. Informatiile inregistrate se pot salva atat in retea cat si pe un hard disk sau stick USB. Este capabil de detectare de miscare si poate fi setat pentru alarma in acest caz.
Aparatul DVR este o forma performanta de stocare a informatiei si este de nelipsit in cadrul oricarui sistem de supraveghere.
Carcateristici :
|
Model No. |
WS-6204D |
|
Main Processor |
High performance embedded microcontroller |
|
Operating System |
Embedded LINUX |
|
System Resources |
multi-channel real-time recording and playback, multi-channel net operation for several persons, USB backup |
|
Operation Interface |
16-bit true color graphical menu interface and mouse support |
|
Menu Display |
1/4 screen |
|
Video Standards |
PAL(625 line, 50 f/s); NTSC (525 line, 60 f/s) |
|
Surveillance Quality |
PAL, D1(704×576); NTSC, D1(704×480) |
|
Playback Quality |
PAL, CIF(352×288)/D1(704×576); NTSC, CIF(352×240)/D1(704×480) |
|
Code Ability |
100/120fps (D1) |
|
Motion Detection |
Zones:396(22*18)detection zones, many levels of Sensitivity setting |
|
Audio |
G711A |
|
Bidirectional Talk |
Support |
|
Recording Mode |
Manual>Alarm>Dynamic Detection>Timing |
|
Playback |
One channel or multi-channel playback (16 channel max synchronized playback) |
|
Search Mode |
Time/Date, Alarm, Motion Detection & exact search(accurate to second) |
|
Space Occupation |
Video: 25～450MB/H |
|
Video Storage |
Hard disk, SD card(optional), and net |
|
Backup Mode |
Network burn, mobile Hard disk and USB burn |
|

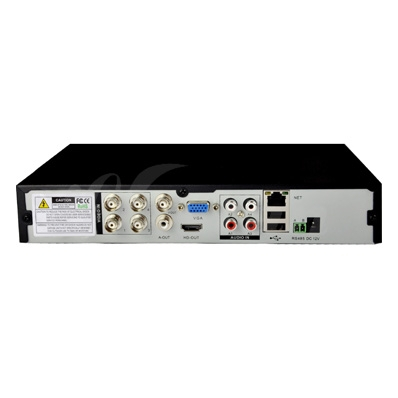

Video Input |
4CH, BNC, 1.0Vp-p,75Ω |
|
Video Output |
1 channel, BNC, 1.0Vp-p,75Ω and 1 VGA output |
|
Audio Input |
Default 1-channel, 4 channel audio can be extended to |
|
Audio Output |
1 channel ,RCA, 200-3000mV,5KΩ |
|
Alarm Input |
N/A |
|
Alarm Output |
N/A |
|
Net Interface |
RJ-45 (10M/100M) |
|
PTZ Control |
RS-485 |
|
USB Interface |
2 Port |
|
With HDMI |
YES |
|
Support 3G & WIFI |
YES |
|
Loop Output |
NO |
|
Hard Disk |
1 SATA ports (max 2048G) |
|
Power Supply |
12V/4.15A |
|
Power Consumption |
<10W(without hard disk) |
|
Working Temperature |
0℃-+55℃ |
|
Working Humidity |
10%－90% |
|
Atmosphere Pressure |
86kpa－106kpa |
|
Dimension |
260mm x 225mm x 43mm(W*D*H) |
|
Weight |
2.60 KG |
Caracteristici:
· Support Symbian, Windows Mobile, Iphone · Support Android, BlackBerry, realtime recording · 4CH D1 all real time · 8CH D1 all real time · With RS-485, With HDMI · Support Apple Mac system viewing · Support 3G and WIFI · Support D1/ HD1/CIF playback · Support mobile phone live view via 3G net · With the unique black box technology · Support D1, CIF, QCIF free combination · Monitor the whole run process of the equipment · Greatly reduce the maintenance costs · H.264 main profile compression algorithm · Video denoising reduced stream 30% lower relatively · Multi-channel simultaneously playback for 16CH · Mobile’s multi-monitor, also emulational mobile phone · Support USB2.0 · The operation system is similar to WINDOWS · Powerful mouse’s right button menu function · Powerful network services · Support DHCP, PPPOE, FTP, DNS, DDNS, NTP · EMAIL, IP permissions, IP searches, Alarm Center · Full Matching (WEB, Client, SDK) · Easy to achieve interoperability · Perfect protection circuit, unique triple watchdog · Low power consumption to assure never out of work · Multiple language OSD available · Chinese, Russian, English, Italian, Portuguese · Spanish, French, German, Japanese, Greek, Thai · Finland, Poland, Vietnam, Hebrew, Romania, Brazil · Ukraine, Iranian, Hungarian, Turkey, Korean · Indonesian, Swedish, Arabic, Czech, Slovakia, Bulgarian · Support PTZ and lens control and alarm · Support multiple channels playback at the same time · Support 1 piece of 2000 GB SATA HDD · Built in 3322, Oray, dyndns myq-see · Built in DDNS free domain
Model :
WS-6204D
Category :
H.264 DVR
Features :
