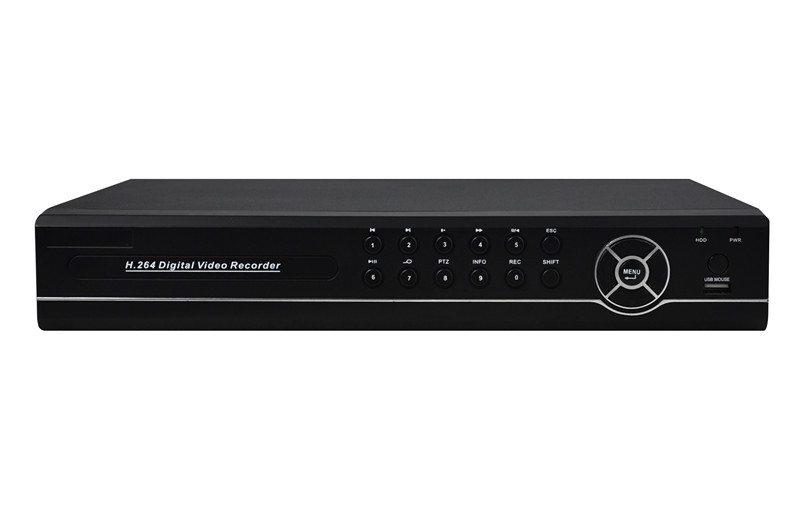

Înregistrator video digital (DVR) cu 4 canale si nivel de compresie H.264. Aparatul are conexiune LAN, 1 ieșire pentru monitorul principal (HDMI, BNC sau VGA), audio: 4 intrari / 1 ieșire audio si parametri setabili independent pentru fiecare canal. Rezoluție maximă este de 704 x 576 si viteză de înregistrare: ajunge pana la 100 fps (720x576), max. 1 HDD suporta pana la 4 T. este accesibil de asemenea si pe Internet Explorer, si pe telefonul mobil, avdn un soft special pentru acest lucru. Cloud technology, 3G/ WIFI. Aparatul poate fi conectat la maxim 4 camere de supraveghere.
Caracteristici:
- 4-Channel 4ch full 960H DVR (Hi3520D) HDMI
- Video Compression: H.264; Video System: PAL/NTSC
- Video input/output: BNC 4-channel Input and 1-channel BNC Output and 1-channel VGA Output
- Audio input/output: RCA 4-channel input/ RCA 1-channel output
- Display resolution: D1 704 x 576 (PAL/NTSC)
- Video Standards: PAL 625 line,50 f/s;NTSC 525 line,60 f/s
- Video Recording: D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
- Realtime live display up to 4 cameras,100/120fps recording for CIF,44fps recording for D1
- Playback resolution: 4CH full 960H recording and palyback simultaneously
- 1 RJ-45 10/100M via Ethernet, Support TCP/IP PPPOE DHCP DNS DDNS SNTP NTP UPNP
- Support Internet Explorer, Mobile phone and special client software, Cloud technology, 3G/ WIFI, JPEG snapshot
- USB,IR Controller(optional),USB2.0 mouse
- Support 1 SATA Hard Disk inferface (4TB in total)
- Dimension: 233mm×300mm×45mm (LxWxH) Weight:2.5Kg
Caracteristici:
Model
ODS-LD04H
System
CPU
Hi3520D
Operation System
Embedded LINUX
System resource
Multiple channels realtime recording,playback,network operation and USB backup
Screen
User Interface
GUI,on-screen menu tips
Screen Display
1/4 screen
Video
Standard
PAL(625 line,50f/s); NTSC(525 line,60f/s)
Compression
H.264(High Profile);JPEG snapshot
Display Quality
TV:D1; VGA,HDMI (support 1920*1080,1280*720,1440*900,1280*1024,1024*768,800*600)
Playback Quality
1080P/720P/D1/HD1/CIF
Encode Capacity
100/120fps 960H
Decode Capacity
100/120fps 960H
Hybrid mode
Only Analog(DVR):4*D1(snapshot)/4*960H
Local+Network input:2*D1+1*1080P+1*720P Only IP(NVR):9*D1/8*960H /4*720P /2*1080P/1*720P+7*D1/1*1080P+1*720P+2*D1
Motion detect
Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel)
Intelligence analysis system
optional
Audio
Audio compression
G711A
Talk back
support
Record and playback
Record mode
Manual>Alarm>Video Detection>Timing
Local playback
1~4ch,under local 4*960H mode,maximum support 4ch playback (4*960H@25fps)
Record Search
Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage and back up
HDD Occupation
Video: CIF 4~5G/day/channel, D1 8~10G/day/channel,960H 12G~20G/day/channel Audio: 691.2M/day/channel
Record Storage
Local HDD,Network
Back up mode
Network/USB movable HDD/USB DVD RW/SATA DVD-RW
Interface
Video input
4ch BNC(1.0Vp-p,75Ω)
Video output
1ch BNC(1.0Vp-p,75Ω) 1ch VGA,1ch HDMI
Loop put
Non-support
Audio input
4ch RCA(200-2800mV,30KΩ)
Audio output
1ch RCA(200-3000mV,5KΩ)
Alarm input
Not have can extend to 4ch
Alarm output
Not have can extend to 1ch
Network
RJ45 10M/100M
PTZ
1 RS485;Support multiple PTZ protocol
USB
2 USB
HDD
1 SATA (each maximum support 4T)
Wireless
3G, WIFI(can extend through USB)
Other
Power
12V/4A
Consumption
Temperature
0ºC-55ºC
Humidity
10%-90%
Atmosphere pressure
86kpa-106kpa
Dimension
L233*W300*H45
Weight
2.5KG
-
