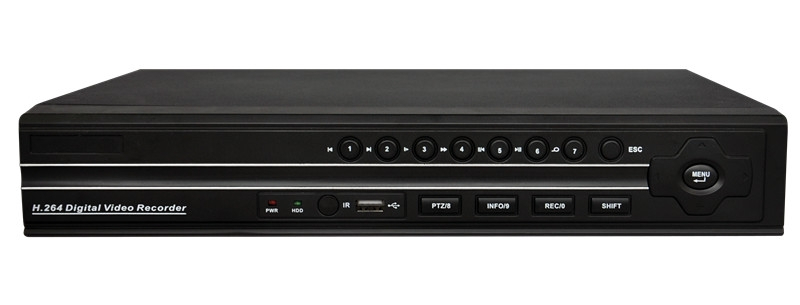

![Dvr 4 canale 960H Real time recording HDMI [1]](https://gomagcdn.ro/domains3/ordis.ro/files/product/original/dvr-4-canale-960h-real-time-recording-hdmi-374597.jpg "Dvr 4 canale 960H Real time recording HDMI [1]")
Livrare 24h
Suport tehnic
Retur bani 30 zile
Garanție 2 ani
- Descriere
- Caracteristici
- Download (1)
- Video (1)
- Review-uri (0)
DVR-ul cu 4 canale marca OEM inregistreaza la o rezolutie inalta, de 960H. Aceasta rezolutie este noul standard pentru DVR-urile ultraperformante.
Aparatele capabile sa inregistreze la aceasta rezolutier vor surprinde imagini clare si detaliate. In felul acesta veti putea distinge multe detalii ce va pot fi folositoare.
In plus, rezolutia 960H creeaza o imagine pe ecran lat care nu trebuie modificata pentru a se potrivi pe un ecran wide. Datorita acestei rezolutii inalte, a iesirii HDMI si a posibilitatii de acces online, DVR-ul OEM este o solutie ideala pentru protectia dumneavoastra.
Înregistrator video digital, 4 canale, H.264, conexiune LAN, 1 ieșire pentru monitorul principal (HDMI, BNC sau VGA), audio: 4 intrari / 1 ieșire audio, parametri setabili independent pentru fiecare canal, rezoluție maximă 704 x 576, viteză de înregistrare: până la 100 fps (720x576), max. 1 HDD pana la 4 T, Support Internet Explorer, Mobile phone and special client software, Cloud technology, 3G/ WIFI.
Caracteristici:
- 4-Channel 4ch full 960H DVR (Hi3520D) HDMI
- Video Compression: H.264; Video System: PAL/NTSC
- Video input/output: BNC 4-channel Input and 1-channel BNC Output and 1-channel VGA Output
- Audio input/output: RCA 4-channel input/ RCA 1-channel output
- Display resolution: D1 704 x 576 (PAL/NTSC)
- Video Standards: PAL 625 line,50 f/s;NTSC 525 line,60 f/s
- Video Recording: D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
- Realtime live display up to 4 cameras,100/120fps recording for CIF,44fps recording for D1
- Playback resolution: 4CH full 960H recording and palyback simultaneously
- 1 RJ-45 10/100M via Ethernet, Support TCP/IP PPPOE DHCP DNS DDNS SNTP NTP UPNP
- Support Internet Explorer, Mobile phone and special client software, Cloud technology, 3G/ WIFI, JPEG snapshot
- USB,IR Controller(optional),USB2.0 mouse
- Support 1 SATA Hard Disk inferface (4TB in total)
- Dimension: 233mm×300mm×45mm (LxWxH) Weight:2.5Kg
Caracteristici:
Model
ODS-BD04H
System
CPU
Hi3520D
Operation System
Embedded LINUX
System resource
Multiple channels realtime recording,playback,network operation and USB backup
Screen
User Interface
GUI,on-screen menu tips
Screen Display
1/4 screen
Video
Standard
PAL(625 line,50f/s); NTSC（525 line,60f/s)
Compression
H.264(High Profile)；JPEG snapshot
Display Quality
TV:D1; VGA,HDMI (support 1920*1080,1280*720,1440*900,1280*1024,1024*768,800*600)
Playback Quality
1080P/720P/D1/HD1/CIF
Encode Capacity
100/120fps 960H
Decode Capacity
100/120fps 960H
Hybrid mode
Only Analog(DVR):4*D1(snapshot)/4*960H
Local+Network input:2*D1+1*1080P+1*720P Only IP(NVR):9*D1/8*960H /4*720P /2*1080P/1*720P+7*D1/1*1080P+1*720P+2*D1
Motion detect
Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel)
Intelligence analysis system
optional
Audio
Audio compression
G711A
Talk back
support
Record and playback
Record mode
Manual>Alarm>Video Detection>Timing
Local playback
1~4ch,under local 4*960H mode,maximum support 4ch playback (4*960H@25fps)
Record Search
Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage and back up
HDD Occupation
Video: CIF 4~5G/day/channel, D1 8~10G/day/channel,960H 12G~20G/day/channel Audio: 691.2M/day/channel
Record Storage
Local HDD,Network
Back up mode
Network/USB movable HDD/USB DVD RW/SATA DVD-RW
Interface
Video input
4ch BNC(1.0Vp-p,75Ω)
Video output
1ch BNC(1.0Vp-p,75Ω) 1ch VGA,1ch HDMI
Loop put
Non-support
Audio input
4ch RCA(200-2800mV,30KΩ)
Audio output
1ch RCA(200-3000mV,5KΩ)
Alarm input
Not have can extend to 4ch
Alarm output
Not have can extend to 1ch
Network
RJ45 10M/100M
PTZ
1 RS485;Support multiple PTZ protocol
USB
2 USB
HDD
1 SATA (each maximum support 4T)
Wireless
3G, WIFI(can extend through USB)
Other
Power
12V/4A
Consumption
Temperature
0ºC-55ºC
Humidity
10%-90%
Atmosphere pressure
86kpa-106kpa
Dimension
L233*W300*H45
Weight
2.5KG
-
