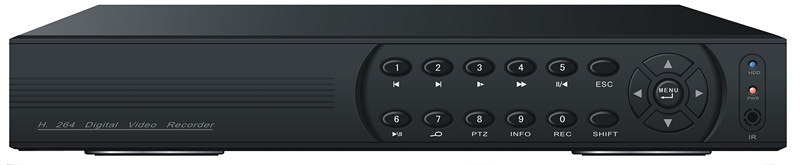

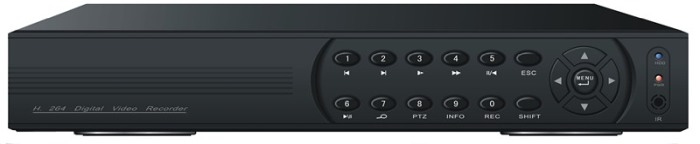

DVR cu 4 canale inregistreaza imagini cu o rezolutie de 960H si cu o viteza de inregistrare pana la 100fps (frames per second) si astfel reuseste sa surprinda imaginile in timp real si la o claritate buna. Cu ajutorul unui astfel de aparat ce se poate conecta la 4 camere de supraveghere veti putea supraveghea eficient spatiul dumneavoastra si actiona la timp in cazuri de urgenta.
Veti putea accesa datele inregistrate de DVR si de pe telefonul mobil prin 3G/WIFI si Cloud technology si astfel veti avea mai multa mobilitate si veti putea supraveghea chiar si de la distanta.
Înregistrator video digital, 4 canale, H.264, conexiune LAN, 1 ieșire pentru monitorul principal (HDMI, BNC sau VGA), audio: 4 intrari / 1 ieșire audio, parametri setabili independent pentru fiecare canal, rezoluție maximă 704 x 576, viteză de înregistrare: până la 100 fps (720x576), max. 1 HDD pana la 4 T, Support Internet Explorer, Mobile phone and special client software, Cloud technology, 3G/ WIFI.
Caracteristici:
- 4-Channel 4ch full 960H DVR (Hi3520D) HDMI
- Video Compression: H.264; Video System: PAL/NTSC
- Video input/output: BNC 4-channel Input and 1-channel BNC Output and 1-channel VGA Output
- Audio input/output: RCA 1-channel input/ RCA 1-channel output
- Display resolution: D1 704 x 576 (PAL/NTSC)
- Video Standards: PAL 625 line,50 f/s;NTSC 525 line,60 f/s
- Video Recording: D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
- Realtime live display up to 4 cameras,100/120fps recording for CIF,44fps recording for D1
- Playback resolution: 4CH full 960H recording and playback simultaneously
- 1 RJ-45 10/100M via Ethernet, Support TCP/IP PPPOE DHCP DNS DDNS SNTP NTP UPNP
- Support Internet Explorer, Mobile phone and special client software, Cloud technology, 3G/ WIFI, JPEG snapshot
- USB,IR Controller(optional),USB2.0 mouse
- Support 1 SATA Hard Disk inferface (4TB in total)
- Dimension: 233mm×300mm×45mm (LxWxH) Weight:2.5Kg
Caracteristici:
Model
ODS-AD04H
System
Main processor
HI 3520D
Operating system
Embedded LINUX
System resource
Multiple channels realtime recording,playback,network operation and USB backup
Screen
User Interface
GUI,on-screen menu tips
Screen Display
1/4 screen
Video
Standard
PAL(625 line,50f/s); NTSC(525 line,60f/s)
Compression
H.264(High Profile) JPEG snapshot
Display Quality
TV:D1; VGA,HDMI
(support 1920*1080,1280*720,1440*900,1280*1024,1024*768,800*600)
Playback quality
1080P/720P/D1/HD1/CIF
Encode capability
100/120fps 960H
Decode capability
100/120fps 960H
Hybrid mode
Only Analog(DVR):
4*D1(snapshot)/4*960H
Local+Network input
2*D1+1*1080P+1*720P
Only IP(NVR):9*D1
/8*960H /4*720P
/2*1080P/1*720P+7*D1/1*1080P+1*720P+2*D1
Motion detect
Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel)
Intelligence analysis system
optional
Audio
Compression
G.711A
Talk back
support
Record and playback
Record mode
manual>alarm>motion detection>timing
Local playback
1~4ch,under local 4*960H mode,maximum support 4ch playback (4*960H@25fps)
Record Search
Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage and back up
HDD Occupation
Video: CIF 4~5G/day/channel, D1 8~10G/day/channel,960H 12G~20G/day/channel Audio: 691.2M/day/channel
Record Storage
Local HDD,Network
Back up mode
Network/USB movable HDD/USB DVD‐RW/SATA DVD-RW
Interface
Video input
4ch BNC(1.0Vp‐p,75Ω)
Video output
1ch BNC(1.0Vp‐p,75Ω)，1ch VGA,1ch HDMI
Loop output
Non‐support
Audio input
1ch RCA(200‐2800mV,30KΩ，can extend to 4ch)
Audio output
1ch RCA(200‐3000mV,5KΩ)
Alarm input
Not have（can extend to 4ch）
Alarm output
Not have（can extend to 1ch）
Network
RJ45 10M/100M
PTZ
1 RS485;Support multiple PTZ protocol
USB
2 USB
HDD
1 or 2 SATA (each maximum support 3T)
Wireless
3G,WIFI(can extend through USB)
Other
Power Supply
12V/2A
Power Consumption
<5W(not including HDD)
Working Humidity
0ºC-+55ºC
Humidity
10%-90%
Atmosphere pressure
86kpa-106kpa
Dimension
L233*W300*H45
Weight
2.5KG
-
