Camera video IP 2.0 Megapixel Speed-dome NVIP-2DN5022SD/IRH-2

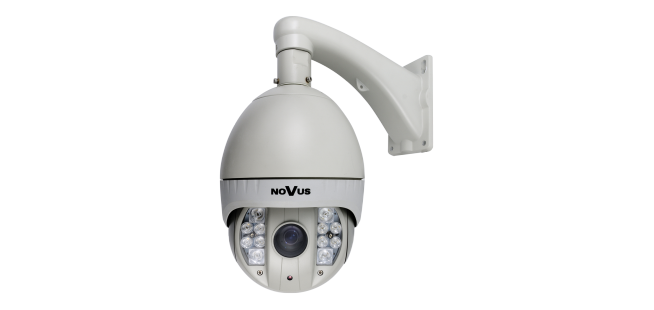

Camera video IP 2.0 Megapixel Speed-dome NVIP-2DN5022SD/IRH-2

Name: Camera video IP 2.0 Megapixel Speed-dome NVIP-2DN5022SD/IRH-2
Brand: Mustek
SKU: NVIP-2DN5022SD/IRH-2
Availability: OutOfStock

Mustek

Detalii:

Livrare 24h

Livrarea se face la adresa specificată de client, de regulă în 24 de ore de la expedierea Comenzii şi poate ajunge la maxim 48 de ore pentru livrarea în zone rurale.
Suport tehnic

Prin suportul tehnic oferit de catre firma noastra puteti instala /mentine sistemele dumneavoastra in perfecta stare de functionare
Retur bani 30 zile

Garanţie retur extinsă pentru 30 de zile.
Garanție 2 ani

Garantia produsului

Cere Oferta

Cod Produs: NVIP-2DN5022SD/IRH-2 Ai nevoie de ajutor? 0752 043 230 / 0269 202 133

Adauga la Favorite

Livrare 24h

Suport tehnic

Retur bani 30 zile

Produse cu garanție

Descriere
Caracteristici
Download (1)
Review-uri (0)

Cameră video IP 2.0 Megapixel de tip Speed-dome NVIP-2DN5022SD/IRH-2 cu un senzor de imagine 1/2.8” CMOS si o lentilă Motor-zoom 22x, AI and AF function: f=4.7 ~ 103 mm (F1.6 ~ F3.5); 55.4° ~ 2.9° Are 12 LEDuri IR (100 m); Variaza in functie de zoom pana la 45°, iluminare minimă: 0.26 lx; AES, DSS, AGC, AWB, BLC, WDR, DNR, F-DNR; rezoluție maxima FullHD; compresie video H.264/M-JPEG; 8 tururi (max 64 presetari pentru fiecare); 4 funcții autoscan; 8 seturi de comenzi (max. 206 s); 256 comenzi presetate, până la 25 ips in toate rezolutiile; max. 10 conectări simultane. Aceasta camera poate transmite concomitent 2 fluxuri video cu parametri definiți individual, intrare/ieșire audio: 1/1 RCA; intrare / ieșire alarmă: 7 (NO/NC) / 2 releu; micro SD card, înregistrări pre/post-alarmă: 20/20s; detecție la mișcare hardware. In caz de alarmă transmite mesaje text, imagini sau flux video către email, FTP sau card;alimentare: 24 VAC; temperatură de funcționare (-40;+50) grade Celsius; IP66.

Caracteristici:

Lens
Image Sensor	2 MPX CMOS sensor 1/2.8” SONY Exmor
Number of Effective Pixels	1920 (H) x 1080 (V)
Min. Illumination	0.26 lx/F1.6 - color mode (1/50 s), 0.005 lx/F1.6 - B/W mode (1/50 s), 0 lx (IR on) - B/W mode
S/N Ratio	> 50 dB (AGC off)
Electronic Shutter	auto/manual: 1/25 s ~ 1/10000 s
Wide Dynamic Range (WDR)	yes
Digital Noise Reduction (DNR)	2D
Defog Function (F-DNR)	yes
Optical Zoom	22x
Lens Type	motor-zoom varifocal, AI and AF function, f=4.7 ~ 103 mm/F1.6 ~ 3.5
Angle of View (H)	55.4° ~ 2.9°
Day/Night
Switching Type	mechanical IR cut filter
Switching Mode	auto, manual
Switching Schedule	yes
Visible Light Sensor	yes
Network
Stream Resolution	1920 x 1080 (Full HD), 720 x 576 (D1), 640 x 480 (VGA), 640 x 360, 352 x 288 (CIF), 320 x 240 (QVGA)
Frame Rate	30 fps for each resolution
Multistreaming Mode	2 streams
Video/Audio Compression	H.264, MJPEG/G.711, RAW_PCM
Number of Simultaneous Connections	max. 10
Bandwidth	18 Mb/s in total
Network Protocols Support	HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP
ONVIF Protocol Support	Profile S (ONVIF2.2)
Camera Configuration	from Internet Explorer browser languages: Polish, English, Russian, and others
Compatible Software	NMS
PTZ
Preset Commands	246
Tours	12 (up to 32 presets per tour)
Auto-Scans	12
Patterns	6 (max. 1000 commands or 300 s for each pattern)
Tilt/Pan Range	0° ~ 93°/360° (continuous)
Pan/Tilt Speed	up to 150°/s (proportional to zoom)
Preset Speed	up to 150°/s
Protocols	Pelco-D, Pelco-P
Other functions
Privacy Zones	8
Image Processing	180˚ image rotation, sharpening, mirror effect
Prealarm/Postalarm	up to 5 MB/up to 86400 s
System Reaction to Alarm Events	e-mail with attachment, saving file on FTP server, saving file on SD card, saving file on NAS server, alarm output activation, HTTP notification, PTZ
IR LED
LED Number	12
Range	up to 100 m (depends on current optical zoom value)
Angle	up to 45° (depends on current optical zoom value)
Interfaces
Video Output	BNC, 1.0 Vp-p, 75 Ohm - maintenance only
Audio Input/Output	1 x RCA/1 x RCA
Alarm Input/Output	7 (NO/NC)/2 relay type
Network Interface	1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Memory Card Slot	microSD
Installation parameters
Dimensions (mm)	220 (Ф) x 310 (H) with bracket: 220 (W) x 368 (H) x 388 (L)
Weight	4.3 kg with bracket: 5.5 kg

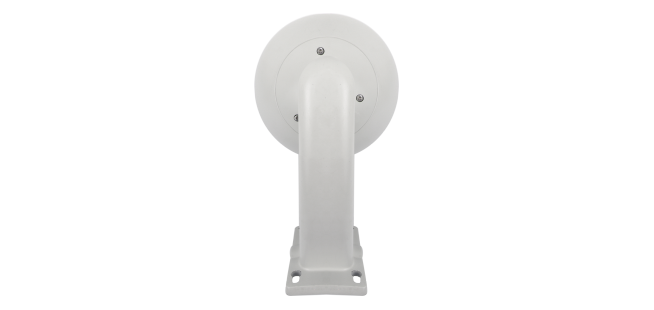

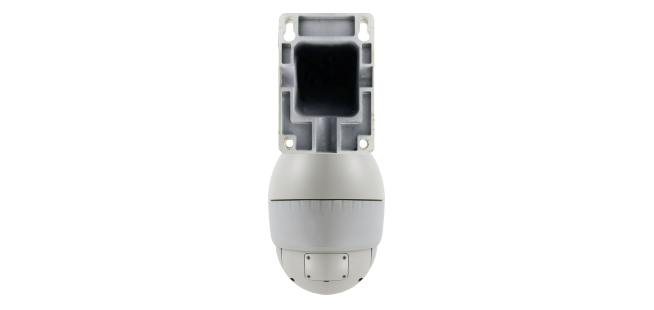

Enclosure	aluminium, white, in-set included: outdoor housing (integrated with the camera), wall mount bracket
Power Supply	24 VAC
Power Consumption	45 W, 50 W (heater on)
Operating temperature with housing	-40°C ~ 60°C
Built-in Heater/Fan	yes/yes
Degree of Protection	IP 66
