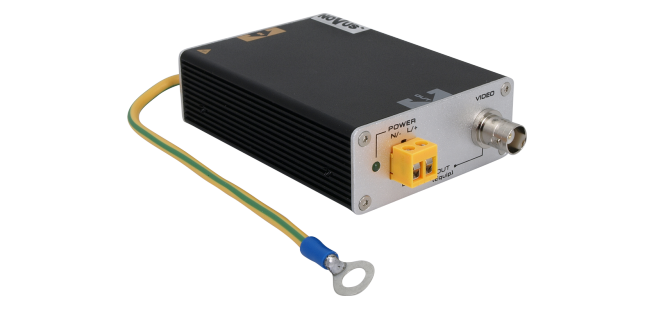

Dispozitiv de protectie semnale video si circuit alimentare canal NVS-021VPS.
| Device Type |
Power and Video 2 in 1 Surge Protector |
| ZABEZPIECZENIE TORU WIDEO | |
|---|---|
| Continuous Operating Voltage |
5 V |
| Max Voltage Operating |
6 V |
| Nominal Discharging Current (8/20 μs) |
5 kA |
| Max Discharging Current (8/20 μs) |
10 kA |
| Limit Voltage (10/700 μs) |
< 20 V |
| Response Time |
≤1ns |
| Insertion Impedence |
≤1Ω |
| Bandwidth |
10 MHz |
| ZABEZPIECZENIE TORU ZASILANIA | |
| Continuous Operating Voltage |
24 V |
| Max Voltage Operating |
36 V |
| Nominal Discharging Current (8/20 μs) |
5 kA |
| Max Discharging Current (8/20 μs) |
10 kA |
| Limit Voltage |
<200 V (8/20µs) |
| Rated Overload Current |
≤10 A |
| Leakage Current |
≤5 µA |
| Response Time |
≤25ns |
| INSTALLATION PARAMETERS | |
| Operating Temperature |
-20°C ~ 55°C |
| Dimensions (mm) |
112 (W) x 63 (H) x 38 (L) |
| Case |
aluminium, black |
-
