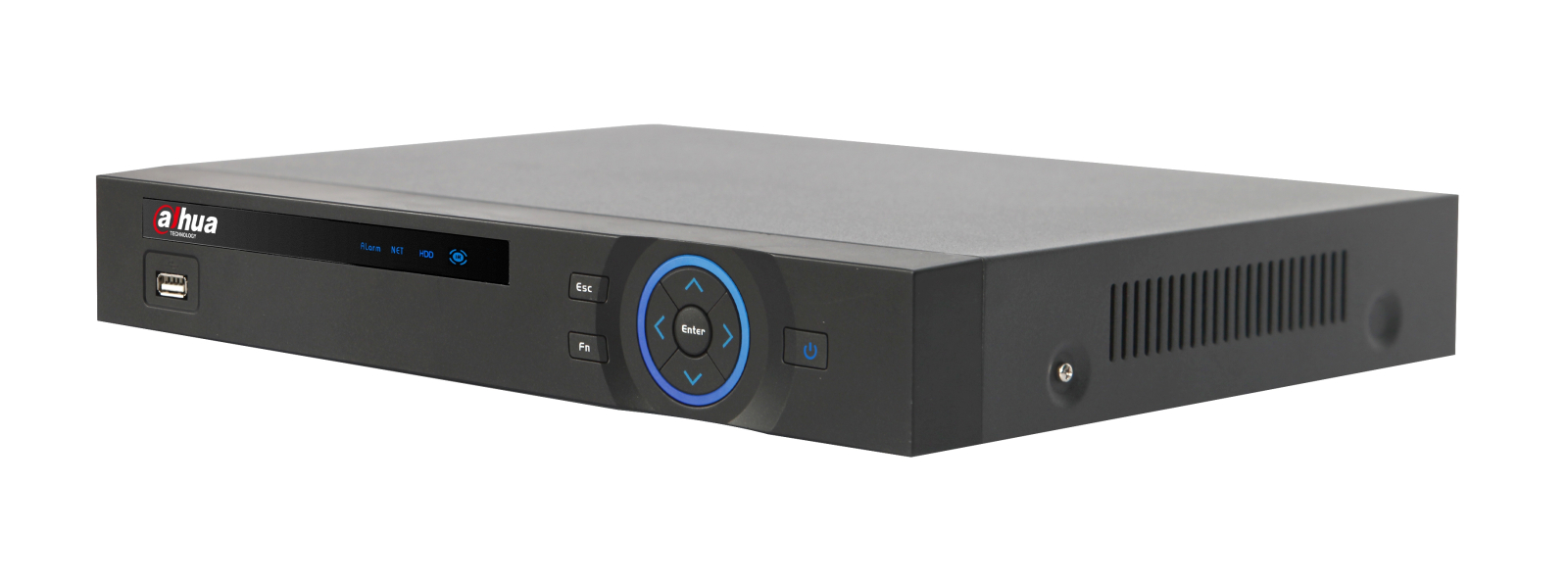

Dvr 8 canale compresie H.264 960h DVR5108-H
5
Livrare 24h
Livrarea se face la adresa specificată de client, de regulă în 24 de ore de la expedierea Comenzii şi poate ajunge la maxim 48 de ore pentru livrarea în zone rurale.
Suport tehnic
Prin suportul tehnic oferit de catre firma noastra puteti instala /mentine sistemele dumneavoastra in perfecta stare de functionare
Retur bani 30 zile
Garanţie retur extinsă pentru 30 de zile.
Garanție 2 ani
Garantia produsului
- Specificații tehnice
- Caracteristici
- Catalog
- Review
Caracteristici:
- 8 intrari video analogic+IP Megapixel,
- 1 intrare audio,
- Inregistrare cu 200 fps WD1, 960H(960x576),
- Inregistrare la detectie miscare, dupa orar, continuu sau intrari alarma, LAN, webserver,
- CMS (soft dispecerat) gratuit pentru 300 canale,
- 2 porturi USB,
- RS485 pentru comanda speed domuri,
- suporta 1 hard disk SATA II ,
- 1 iesire videocomplex,
- 1 iesire VGA,
- 1 iesire HDMI,
- Dual stream,
- Permite vizualizarea direct de pe telefonul mobil 3G Smartphone (Android, iPhone, Win mobile, Symbian, BlackBerry),
- Playback simultan pentru 8 canale,
- Operare pentaplex,
- Telecomanda,
- Controlul meniurilor cu mouse USB,
- Controlul speed domurilor cu mouse direct pe imagine (3D intelligent location - click on image),
- Dimensiune mini 1U 325mm x 245mm x 45mm
| Model | DH-DVR5104H-V2 | DH-DVR5108H | DH-DVR5116H | |
| System | ||||
| Main Processor | Embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |||
| Audio | ||||
| Input | 1 channel, RCA | |||
| Output | 1 channel, RCA | |||
| Two-way Talk | Reuse audio input/output channel 1 | |||
| Display | ||||
| Interface | 1 HDMI, 1 VGA, 1 TV | |||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | |
| Privacy Masking | 4 rectangular zones (each camera) | |||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Video/Audio Compression | H.264 / G.711 | |||
| Resolution | 960H/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120) | |||
| Record Rate | Main Stream: | 960H/D1/HD1/2CIF/CIF(1~25/30fps) | ||
| Extra Stream | QCIF(1-25/30fps)/CIF(1-6/7fps) | |||
| Bit Rate | 48~3072Kb/s | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection | ||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Playback & Backup | ||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device/Network/Internal SATA burner | |||
| Network | ||||
| Ethernet | RJ-45 port (10/100M) | |||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |||
| Max. User Access | 128 users | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Storage | ||||
| Internal HDD | 1 SATA port, up to 4TB | |||
| Auxiliary Interface | ||||
| USB Interface | 2 ports (1 Rear), USB2.0 | |||
| RS485 | PTZ control | |||
| General | ||||
| Power Supply | DC12V/2A | |||
| Power Consumption | 10W(without HDD) | |||
| Working Environment | -10°C ~+55°C /10%~90%RH / 86~106kpa | |||
| Dimension(W×D×H) | Mini 1U, 325mm×245mm×45mm | |||
| Weight | 1.5KG(without HDD) | |||
